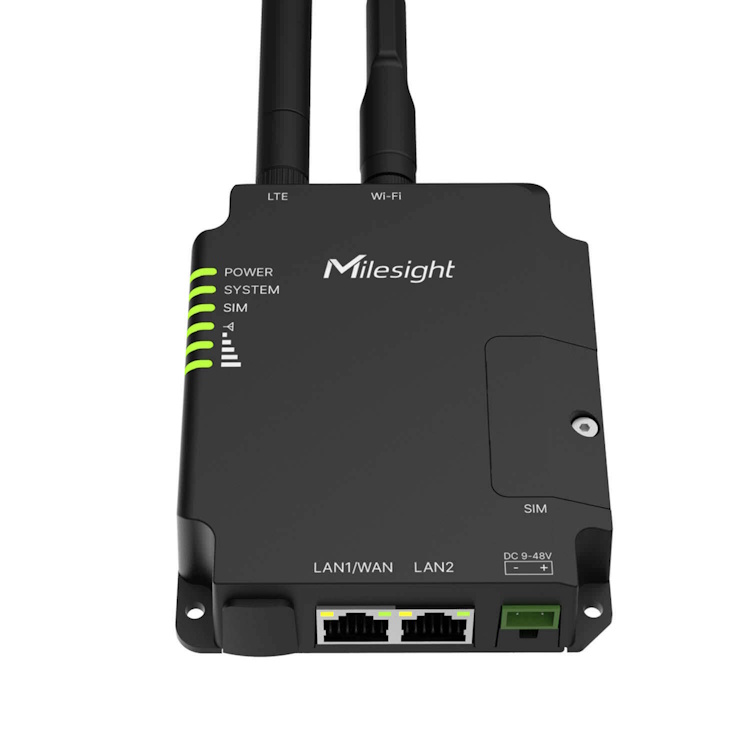

Milesight 4G reititin UR32S-L04EU-P vie kameraa nettiin
Milesight UR32S on monipuolinen 4G-PoE-reititin jonka latausnopeus on jopa 150 Mb/s ja lähetysnopeus 50 Mb/s. Kestävä industrial-tason pienikokoinen alumiinista valmistettu kotelo suojaa laitetta ja takaa toimintalämpötila-alueeksi jopa -40°C – 70°C.
Reitittimessä on myös langaton WiFi ja liitäntä ulkoisille antenneille.
PoE-reititin
Reititin on varustettu kahdella PoE-virransyöttöä tukevalla portilla, jolloin siihen voidaan kiinnittää suoraan esim. valvontakamera tai muu PoE-virransyötöllä toimiva laite.
2 x Ethernet-liitäntää (1 × WAN + 1 × LAN tai 2 × LAN).
Monipuoliset etähallintamahdollisuudet, mm. Milesight Device Hub sekä MilesightVPN.
Katso tarkemmat tiedot teknisistä tiedoista.
Wi-Fi Client and AP Mode
Global 4G LTE CAT4/3G Network
NXP Processor
IP30 Protection with Metal Housing
VPN
CPU: ARM Cortex-A7, 528 MHz
Memory: 128 MB DDR3 RAM and 128 MB Flash
Cellular Interface: Antenna Connector 1 × 50 Ω SMA Connectors (Center PIN: SMA Female)
SIM Slots: 1 (Mini SIM-2FF）
Ethernet Interface Numbers: 1 × WAN + 1 × LAN or 2 × LAN + PoE
Property: 1 (Mini SIM-2FF)
Mode: Full or half-duplex (Auto-Sensing)
PoE: 2 × 802.3 af/at PoE PSE on LAN Ports (Optional)
Network Protocols: IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QoS, SNTP, Telnet, VLAN, SSH, etc.
Antenna Connector: 1×50Ω SMA Connector (Center PIN: RP-SMA Female)
Standards: IEEE 802.11 b/g/n,2.4GHz
Tx Power: 802.11b: 16 dBm +/-1.5 dBm (11 Mbps)
802.11g: 14 dBm +/-1.5 dBm (54 Mbps)
802.11n: 13 dBm +/-1.5 dBm (65 Mbps, HT20/40 MCS7)
Modes: AP or Client mode
Security: WPA/WPA2 authentication, WEP/TKIP/AES encryption
VPN: DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE
Security: Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), IP Passthrough
Management: Web, CLI, SMS, On-demand dial-up, SNMP v1/v2/v3, DeviceHub
AAA: Radius, Tacacs+, LDAP, Local Authentication
Multilevel Authority: Multiple Levels of User Authority
Reliability: VRRP, WAN Failover
Power Connector: 2-pin 5.08 mm Terminal Block
Input Voltage: 9-48 VDC, with Surge-Protection and Reverse Polarity Protection
Ingress Protection: IP30
Housing: Metal
Dimension: 108 × 90 × 26 mm (4.25 × 3.54 × 1.02 in)
Installation: Desktop, Wall or DIN Rail Mounting
Operating Temperature: -40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Ab
Storage Temperature: -40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation: 1.5 kV RMS
Relative Humidity: 0% to 95% (non-condensing) at 25°C/77℉
