Intelligent AI-powered Vehicle Detection Camera

Camera Name Entrance & Exit AI LPR Bullet Camera

• Image Sensor 1/2.8" Progressive Scan CMOS
• Min. Illumination Color: 0.005Lux@F1.4 B/W: 0Lux with IR on WDR 140dB Super WDR Shutter Time 1/100000s∼1s Day/Night Mode Day/Night/Auto/Customize/Schedule Illumination Distance Up to 20m S/N >55dB
• Lens
  Lens Motorized 2.7~13.5mm@F1.4 Field of View H111°~H34°/D130°~D39°/V60°~V19° Mount Φ14 Focus Control Auto/Manual Entrance & Exit Management Max. Vehicle Speed 30km/h Recognition Accuracy >98% Coverage 2 lanes Country/Region Supported More than 80 countries and regions ANPR Distance Up to 15m

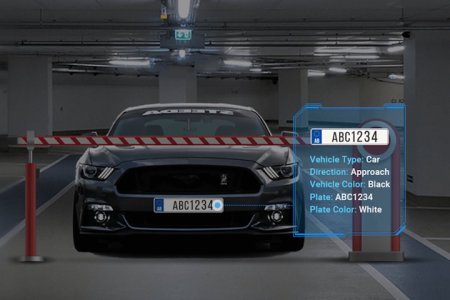

• Attributes Identification Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection Smart Traffic Function Evidence Camera Linkage White/Black List Up to 20,000 records inside the camera LPR Smart Search Support
• Interface
  Ethernet 1*RJ45 10M/100M Ethernet Port Audio I/O 1/1 (Multi-interface Version) Alarm I/O 1/1 (Multi-interface Version)
• Video
  Max. Image Resolution 1920x1080 Primary Stream 60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576) Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable) Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional) ROI Up to 8 areas Image Settings Saturation/Brightness/Contrast/Sharpness
• Network
  Network Storage NAS(Support NFS, SMB/CIFS), ANR Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
• Audio
  Audio Compression G.711/AAC/G.722/G.726 Audio Sampling Rate 8/16/32/44.1/48KHz Audio Bit Rate 16~256kbps Two-way Audio Support
• System
  System Compatibility API, MQTT, HTTP, TCP, ONVIF Profile G & M & S & T Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark SIP/VoIP Support Yes, Voice&Video-over-IP Event Trigger Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. General Working Temperature -40℃∼60℃ Working Humidity 0∼95%(Non-condensing) Power Supply PoE(802.3af)/DC 12V±10% Power Consumption Min.: 2.44W (DC 12V), 3.36W(PoE) Max.: 8.6W (DC 12V), 10.6W(PoE) Weather Proof Up to IP67-rated for Weather-resistant Performance Housing Vandal-proof IK10-rated Metal Housing Weight 825g Dimensions Φ76mmX239.5mm Warranty 3/5 Years
• Certifications
  EMC CE-EMC (EN 55032, EN 55035), FCC (PART 15B) Safety CE-LVD (EN IEC 62368-1) Environment CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)
