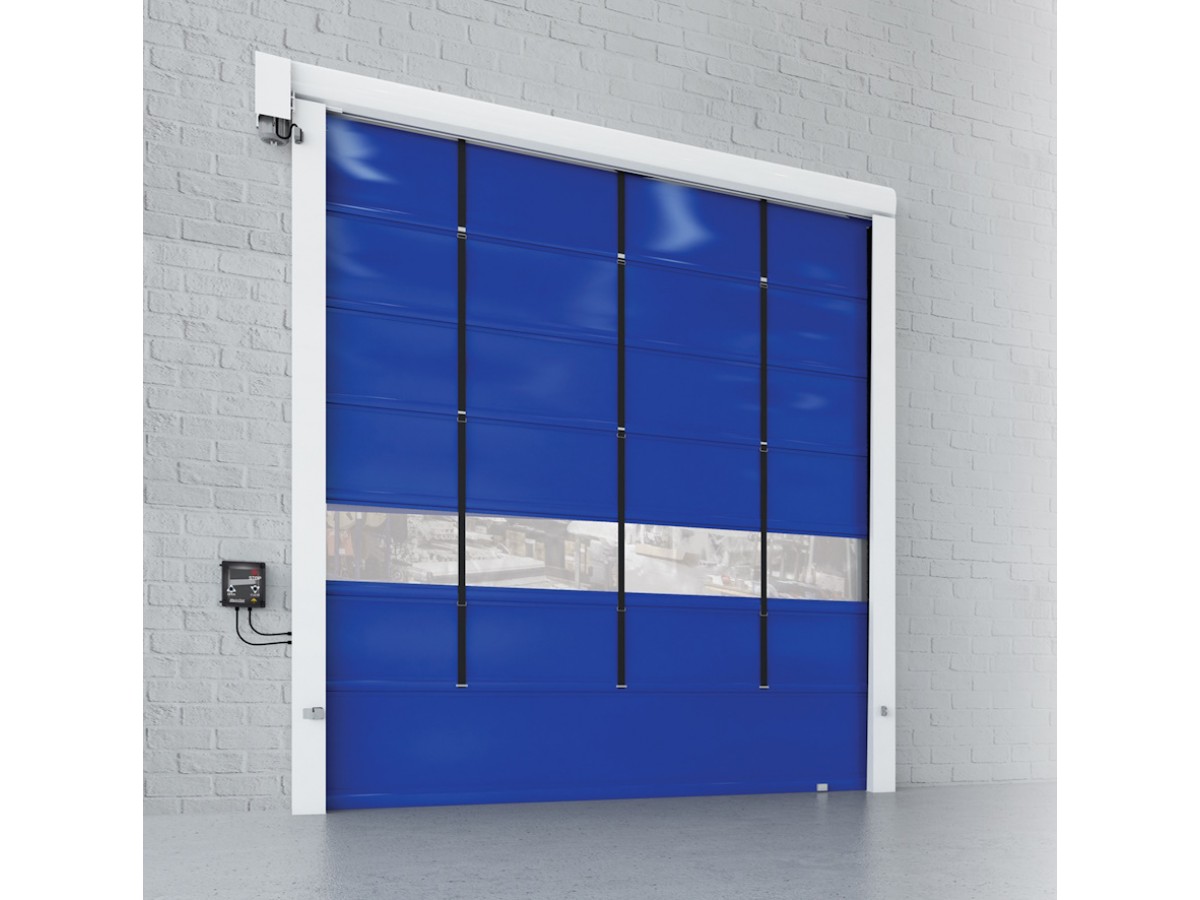

Pile stacking rapid door - up to 130 m2 size
KIT COMPONENTS
  • Motor 1500W - 4000W motor controlled by inverter with 230Vac or 380Vac power
  • Control board with industrial box waterproof with up, down and stop buttons
  • column photocells
  • External push button
  • Temperature range -25ºC ~ 55ºC
  • wind speed up 66 m/sek

  • Colors: covers white, textile - RAL according your choise
  • Check door hand - motor and control box

    Inform you open window size in mm
  • Width 3000 - 13000 mm
  • Height 3000 - 10000 mm

    Order instructions

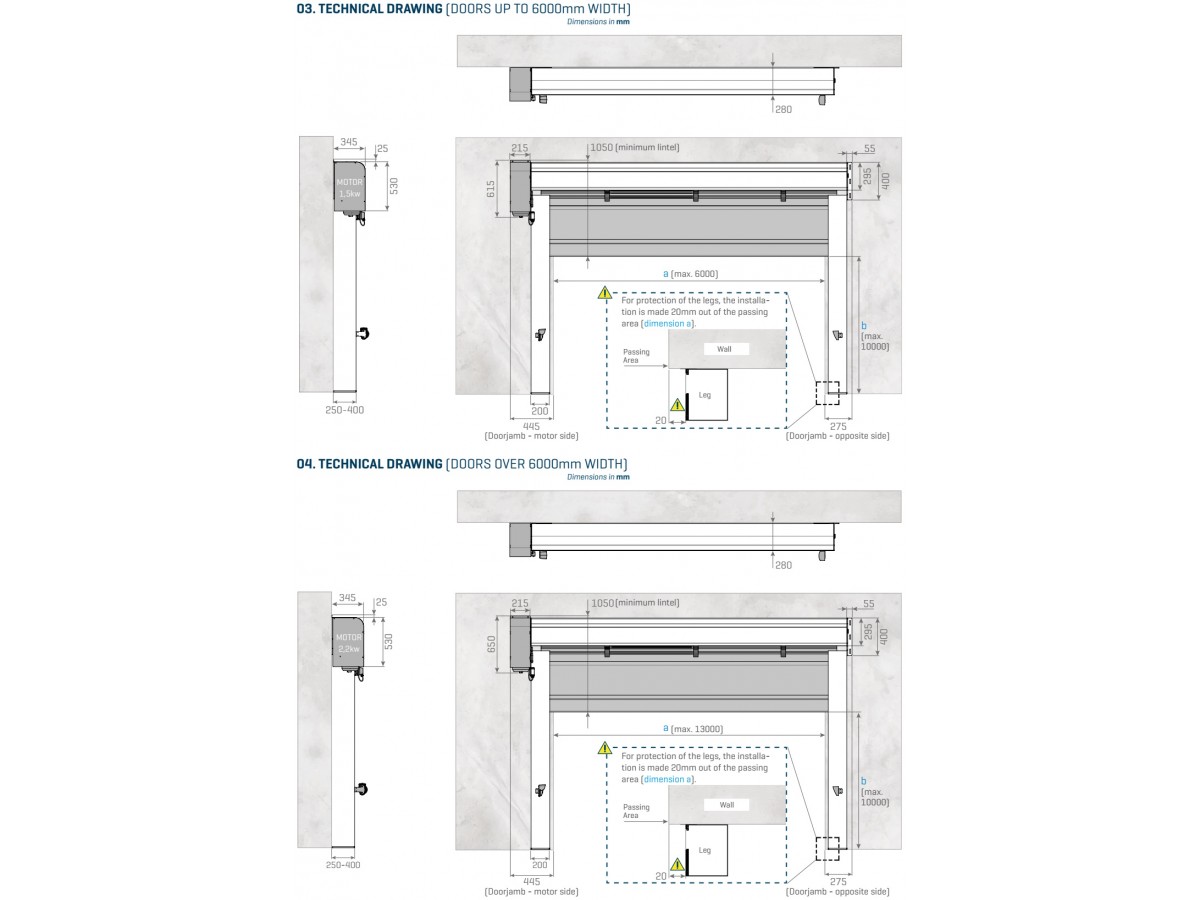

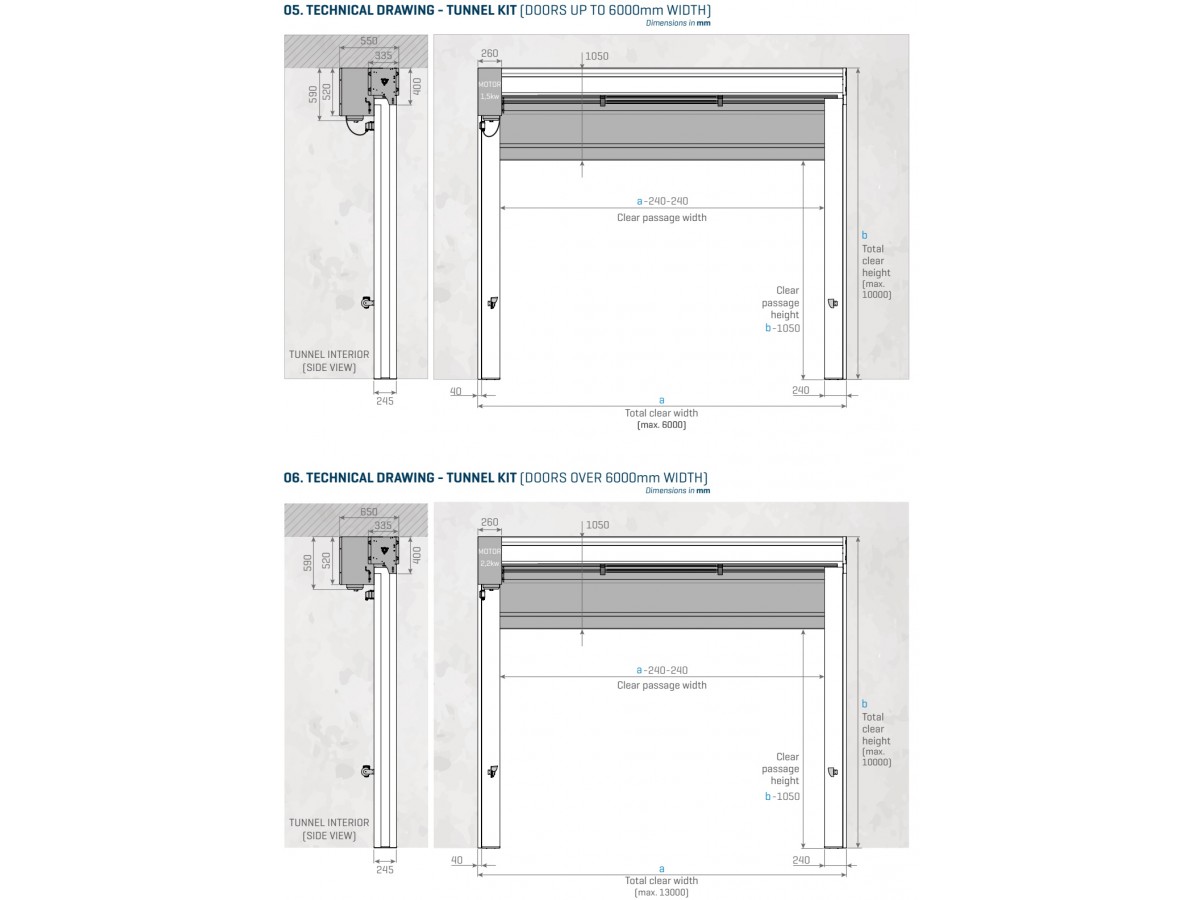

  • examine the additional pictures and find out your own measurements
  • put all the information
  • dimensions A,B,C,D,E are order check dimensions
  • add the product to the basket
  • when we receive the order - we check the order information once more.

  • Pile stacking rapid door

    • Product Code: pile
    • Availability: 18 - 25 working days
    • 7,812.00€

    • Ex Tax: 6,300.00€

    Available Options


    Tags: Pile stacking rapid door
